AUT Solutions specializes in the manufacturing of Automated Corrosion Mapping, Multi-channel Pulse Echo, Phased Array, TOFD, and Short Range Guided Wave inspection systems. What makes our product better? Our reliable and truly modular part concept; turnkey automated acquisition system; multi-functional and configurable design; same day support; and very cost effective. Our scanners are designed by the field technician and proudly built in the USA!

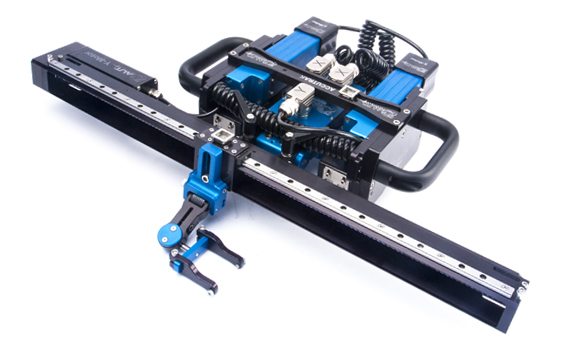

ACCUTRAK

The AccuTrak is the first ever “truly modular” steerable automated NDT scanner which offers both 2 or 3 axis versions and has the ability to scan just about any contoured magnetic surface. Perfect as a tank inspection scanner, automated weld guided scanner and more.

  • 3-Axis version – Remote Corrosion Mapping
  • 2-Axis version – Weld Inspection/Line B-Scans
  • Modular design concept, axial scanning, laser guided, tank inspection crawler
  • Weld following crawler/scanner
  • Works with ProScan, Omniscan, TD Scan, Pocket UT, M2M, GE, Zetec, VEO, and more

Click to learn more

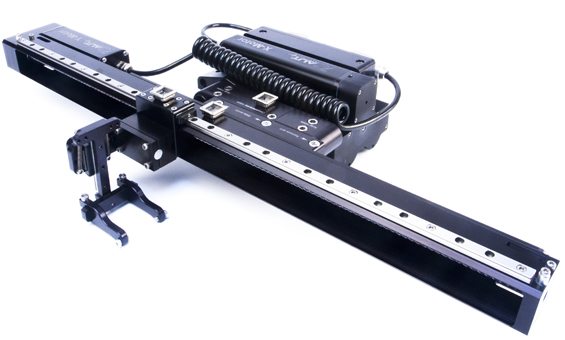

ACCUSCAN

The Accuscan is the workhorse of AUT. This automated 2-axis scanner can scan at up to 30″ per second and will scan on items ranging from 2″ pipe to flat surfaces. Its modular design means switching arms or motors takes only a few minutes and can be done in the field. The complete system, including the compact motor controller and umbilical, fits in one case, making travel simple.

  • Fast – Scan up to 30″/sec
  • Lightweight – Scanner weighs less than 15 pounds
  • Modular – Arms and motors can be switched in only a few minutes
  • Works with ProScan, Omniscan, TD Scan, Pocket UT, PRAGMA, GE, Zetec, VEO, and more

Click to learn more

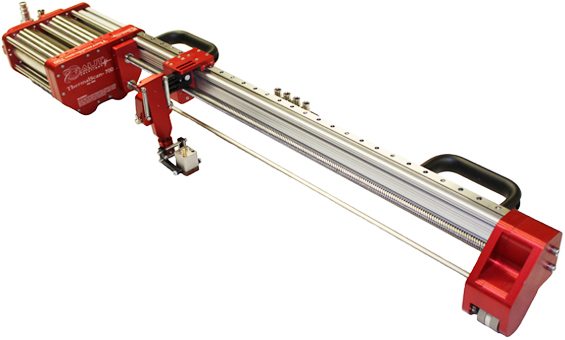

THERMALSCAN-700

The ThermalScan-700 is an automated 2-axis scanner with a cooling system for use on high temperature components up to 700F.

  • Fast – Arm speed up to 15″/sec, wheels 5″/sec.
  • Modular – Arms and motors can be switched in minutes.
  • Versatile – From 3″ OD pipe to flat surfaces
  • Works with ProScan, Omniscan, TD Scan, Pocket UT, PRAGMA, GE, Zetec, VEO, and more

Click to learn more

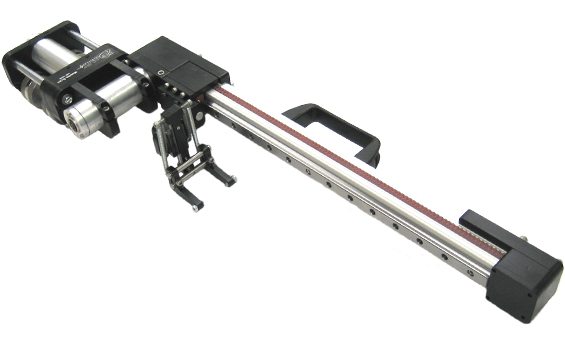

MOBILESCAN

The MobileScan is an ultra-portable, low-cost automated 2-axis scanner. Its small, lightweight design is perfect for scanning elevated areas such as towers, turbines, and bridges. It can run on battery power for up to 20 hours per charge. This scanner’s small size and battery powered performance make it one of the most portable scanners on the market.

  • Ultra-portable, Low Cost, Modular
  • 6″/sec arm scan speed
  • Up to 20 hours per battery charge
  • Works with ProScan, Omniscan, TD Scan, Pocket UT, PRAGMA, GE, Zetec, VEO, and more
