ACCUTRAK LT

Remote Access Robotic Crawler

  • API 653 B-Scan Tank Inspection

  • Phased Array/TOFD Weld Inspection

  • Modular and Upgradable to 3-Axis

  • Battery Powered (8-hour run time)



The AccuTrak LT was developed for remote B-Scan applications such as API 653 tank inspection and for Phased-Array/TOFD weld inspection. The AccuTrak LT scanner is controlled by a small 2-axis manual motor controller using a hand held joystick and does not require a computer to operate it.

It can scan up to 6” per second and can climb vertically over weld seams as high as 3/4” without hang ups or falling off. The system comes with a battery pack that can provide the scanner up to 8 hours of run time and also an AC/DC power supply and 100ft umbilical.

We offer 2 versions of systems that can be purchased; the TankScan (B-Scan) and WeldScan (Phased array and TOFD). The Tank Scan version comes with probe gimble, 5MHz composite 3/8” diameter element dual transducer, probe skid and cable. The WeldScan version comes with 2 probe gimbles bar kit and laser line; all fitting into one shipping case to make it ultra-portable.

The AccuTrak LT is a modular designed scanner so modifications or repairs can be done in the field within minutes.  A huge benefit of this scanner is the ability to be upgraded to a 3-axis computer controlled raster scanning system for remote C-scan applications.  Ask your self this, why buy a scanner to perform only one duty when you can buy one scanner that can perform many.

Proudly designed, manufactured and assembled in the USA

Category: Automated NDT UT Scanners

FEATURES
  • Fast – Fast – 6″/sec (150mm/sec)
  • Modular – Change parts in seconds
  • Mobility – Zero turn within a 12” radius
  • Lightweight – 17lbs
  • Power – VAC or battery pack
  • Portable – Ships in 1 case
  • Practical – Circumferential O.D. Scans: 4″+ Axial O.D. Scans: 8”+
  • Magnetic wheels – Strong, allows vertical climbing.
  • Power – VAC or battery pack
  • Compatible – Works with ProScan, Omniscan, TD Scan, M2M, Zetec, VEO, and more
INCLUDES
  • 100ft. umbilical with strain relief
  • 2-Axis manual motor controller
  • Joystick
  • Shipping case
  • Battery pack and AC/DC power supply
  • TankScan version – 5MHz probe, skid, gimble
  • WeldScan version – 2 gimble kit with line laser
  • 1 year factory warranty
  • User manual
OPTIONAL ACCESSORIES
  • ProScanXT Ultrasonic System w/ software
  • 3-axis conversion kit
  • Longer or short umbilicals
  • Extra battery pack
  • Thickness probes of varies size and frequency
  • Weld Inspection gimbles and brackets
  • Water irrigation pump system
  • Catamaran weld scanner conversion kit
  • Rotary arm tool for internal pipe inspection >10″
  • EMAT probe holders

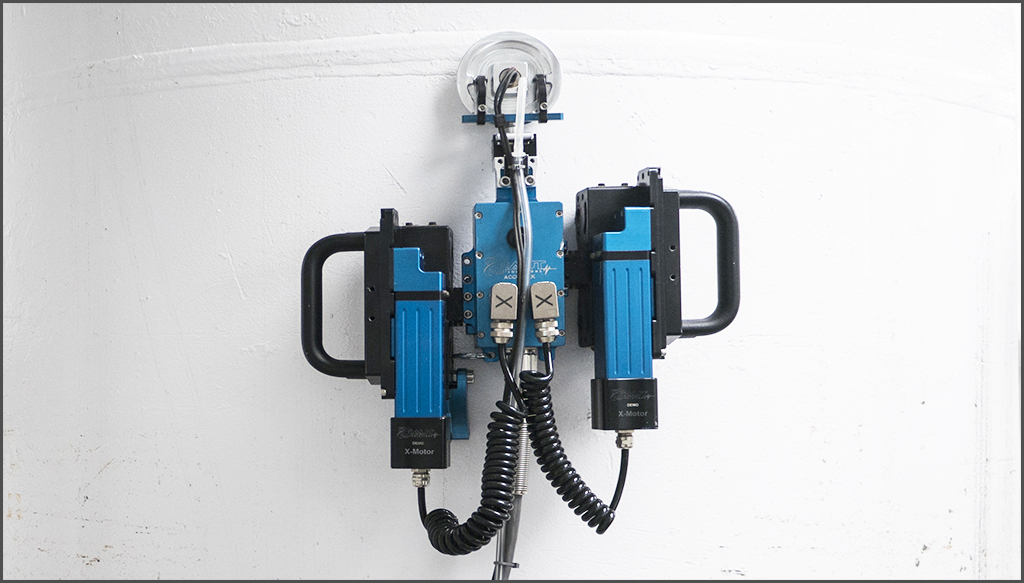

Tank and Vessel Corrosion Inspection Version

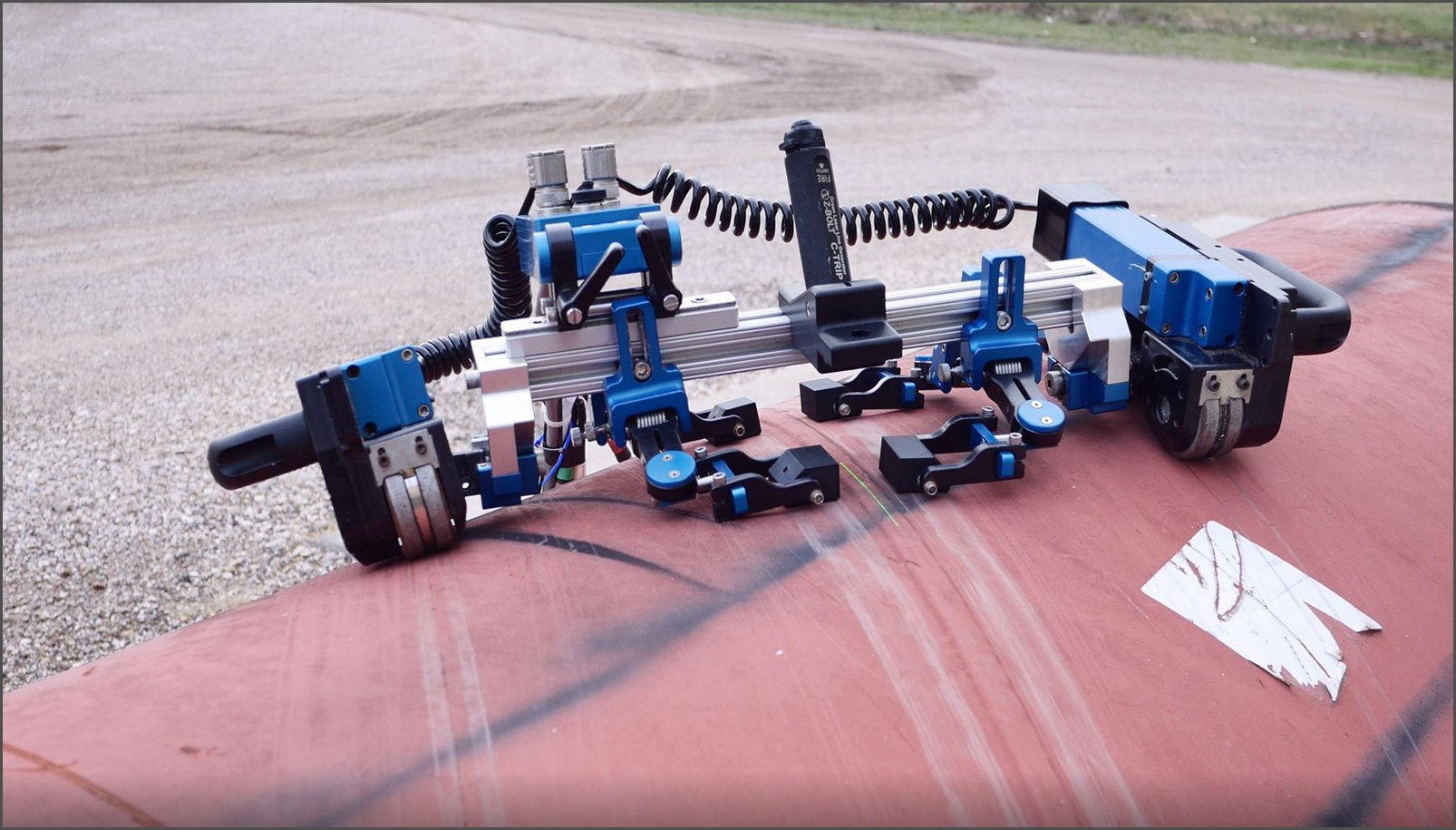

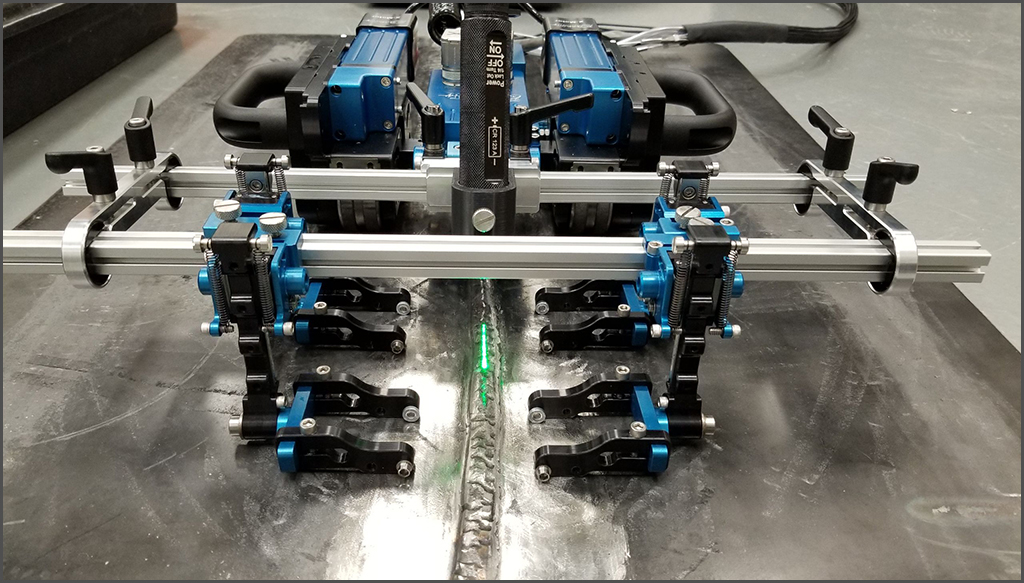

Weld Inspection Version

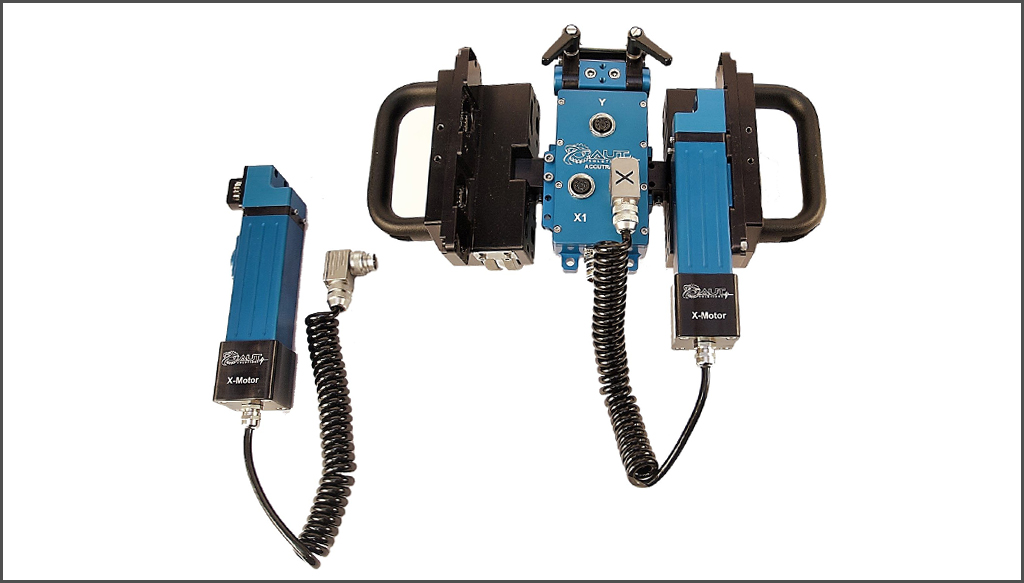

Modular Design

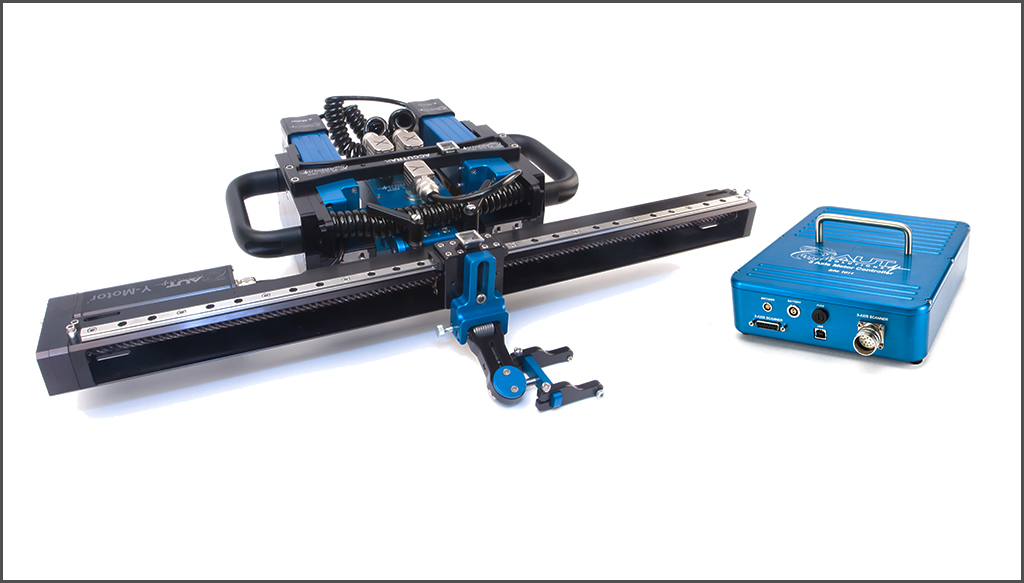

Upgrade To Computerized 3-Axis Inspection System

Optional Catamaran Setup

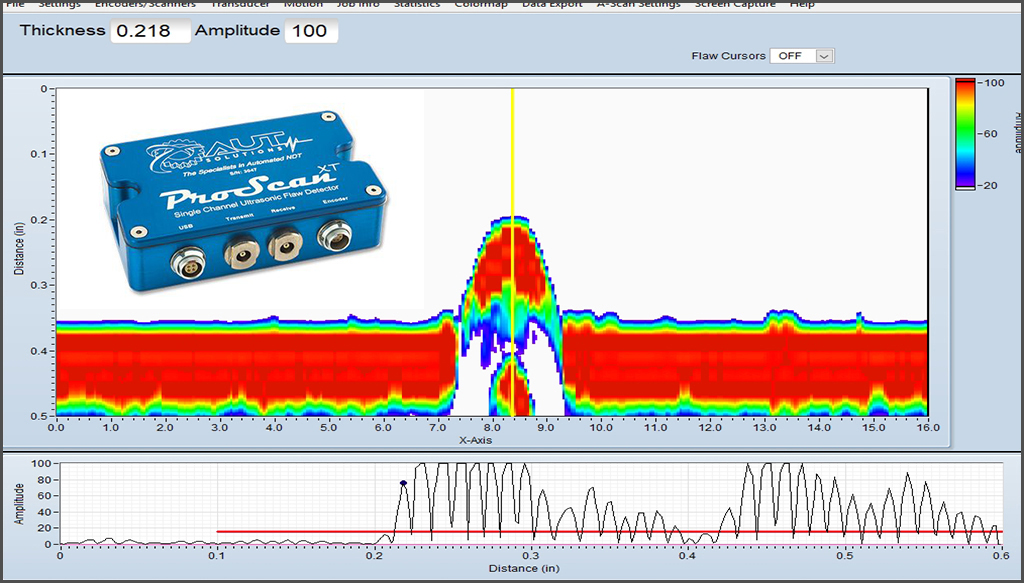

Optional ProScan LT Acquisition System
